Using Rainbowkit with Flow Wallet

Integrating Flow Wallet with RainbowKit allows users to seamlessly connect their Flow accounts through one of the most popular wallet connection interfaces.

This guide walks you through the process of defining Flow Wallet as a custom wallet in RainbowKit and testing the integration. You can follow along by setting up a new RainbowKit project or use the code in this guide to integrate these steps into your existing dApp.

Objectives

After completing this guide, you'll be able to:

• Create a custom Flow Wallet connector compatible with RainbowKit's interface
• Configure your Wagmi setup to support Flow Wallet connections
• Implement a complete wallet connection flow for Flow blockchain users
• Test and verify the Flow Wallet integration in your dApp

Prerequisites

Next.js and Modern Frontend Development

The RainbowKit starter is built on Next.js, so familiarity with React, hooks, and modern frontend development will help you follow along.

A Flow Wallet

To use Flow Wallet with RainbowKit, install the Flow Wallet browser extension from the Chrome Web Store.

Once installed, set up your wallet by creating or importing an account. For quick access, pin the extension to your browser toolbar.

Setting Up Your Environment

Initial Setup

The RainbowKit starter is built on Next.js, following its standard project structure and conventions. Create a new project or ensure your existing one has the necessary dependencies:

_10

$ npm init @rainbow-me/rainbowkit@latest

_10

$ cd my-rainbowkit-app

_10

$ npm run dev

The RainbowKit components will be available throughout your application via the provided wrapper components.

Creating the Flow Wallet Connector

The first major step is defining the Flow Wallet connector. Create a new file called flowWallet.ts in src/flowWallet.ts to house the wallet configuration:

_64

/* src/flowWallet.ts */

_64

import { Wallet, getWalletConnectConnector } from '@rainbow-me/rainbowkit';

_64

_64

export interface MyWalletOptions {

_64

projectId: string;

_64

}

_64

_64

export const flowWallet = ({ projectId }: MyWalletOptions): Wallet => ({

_64

id: 'flow-wallet',

_64

name: 'Flow Wallet',

_64

rdns: 'com.flowfoundation.wallet',

_64

iconUrl: 'https://lilico.app/logo_mobile.png',

_64

iconBackground: '#41CC5D',

_64

downloadUrls: {

_64

android: 'https://play.google.com/store/apps/details?id=com.flowfoundation.wallet',

_64

ios: 'https://apps.apple.com/ca/app/flow-wallet-nfts-and-crypto/id6478996750',

_64

chrome: 'https://chromewebstore.google.com/detail/flow-wallet/hpclkefagolihohboafpheddmmgdffjm',

_64

qrCode: 'https://link.lilico.app',

_64

},

_64

mobile: {

_64

getUri: (uri: string) => `https://fcw-link.lilico.app/wc?uri=${encodeURIComponent(uri)}`,

_64

},

_64

qrCode: {

_64

getUri: (uri: string) => uri,

_64

instructions: {

_64

learnMoreUrl: 'https://wallet.flow.com',

_64

steps: [

_64

{

_64

description: 'We recommend putting Flow Wallet on your home screen for faster access to your wallet.',

_64

step: 'install',

_64

title: 'Open the Flow Wallet app',

_64

},

_64

{

_64

description: 'You can find the scan button on home page, a connection prompt will appear for you to connect your wallet.',

_64

step: 'scan',

_64

title: 'Tap the scan button',

_64

},

_64

],

_64

},

_64

},

_64

extension: {

_64

instructions: {

_64

learnMoreUrl: 'https://wallet.flow.com',

_64

steps: [

_64

{

_64

description: 'We recommend pinning Flow Wallet to your taskbar for quicker access to your wallet.',

_64

step: 'install',

_64

title: 'Install the Flow Wallet extension',

_64

},

_64

{

_64

description: 'Be sure to back up your wallet using a secure method. Never share your secret phrase with anyone.',

_64

step: 'create',

_64

title: 'Create or Import a Wallet',

_64

},

_64

{

_64

description: 'Once you set up your wallet, click below to refresh the browser and load up the extension.',

_64

step: 'refresh',

_64

title: 'Refresh your browser',

_64

},

_64

],

_64

},

_64

},

_64

createConnector: getWalletConnectConnector({ projectId }),

_64

});

Configuring Wagmi Integration

Next, update your Wagmi configuration to include Flow Wallet support. Modify your wagmi.ts file:

_36

/* src/wagmi.ts */

_36

'use client';

_36

_36

import { connectorsForWallets } from '@rainbow-me/rainbowkit';

_36

import { createConfig, http } from 'wagmi';

_36

import { mainnet, flowMainnet } from 'viem/chains';

_36

import { flowWallet } from './flowWallet';

_36

_36

/*

_36

We can leave this as is for the tutorial but it should be

_36

replaced with your own project ID for production use.

_36

*/

_36

const projectId = 'YOUR_PROJECT_ID';

_36

_36

const connectors = connectorsForWallets(

_36

[

_36

{

_36

groupName: 'Recommended',

_36

wallets: [flowWallet]

_36

},

_36

],

_36

{

_36

appName: 'RainbowKit App',

_36

projectId,

_36

}

_36

);

_36

_36

export const config = createConfig({

_36

connectors,

_36

chains: [flowMainnet, mainnet],

_36

ssr: true,

_36

transports: {

_36

[flowMainnet.id]: http(),

_36

[mainnet.id]: http(),

_36

},

_36

});

info

WalletConnect Project ID

Every dApp that relies on WalletConnect now needs to obtain a projectId from WalletConnect Cloud (now rebranded as reown). This is absolutely free and only takes a few minutes.

To get a Project ID, sign up at WalletConnect Cloud, create a new project, and copy the generated ID into the projectId variable in the wagmi.ts file.

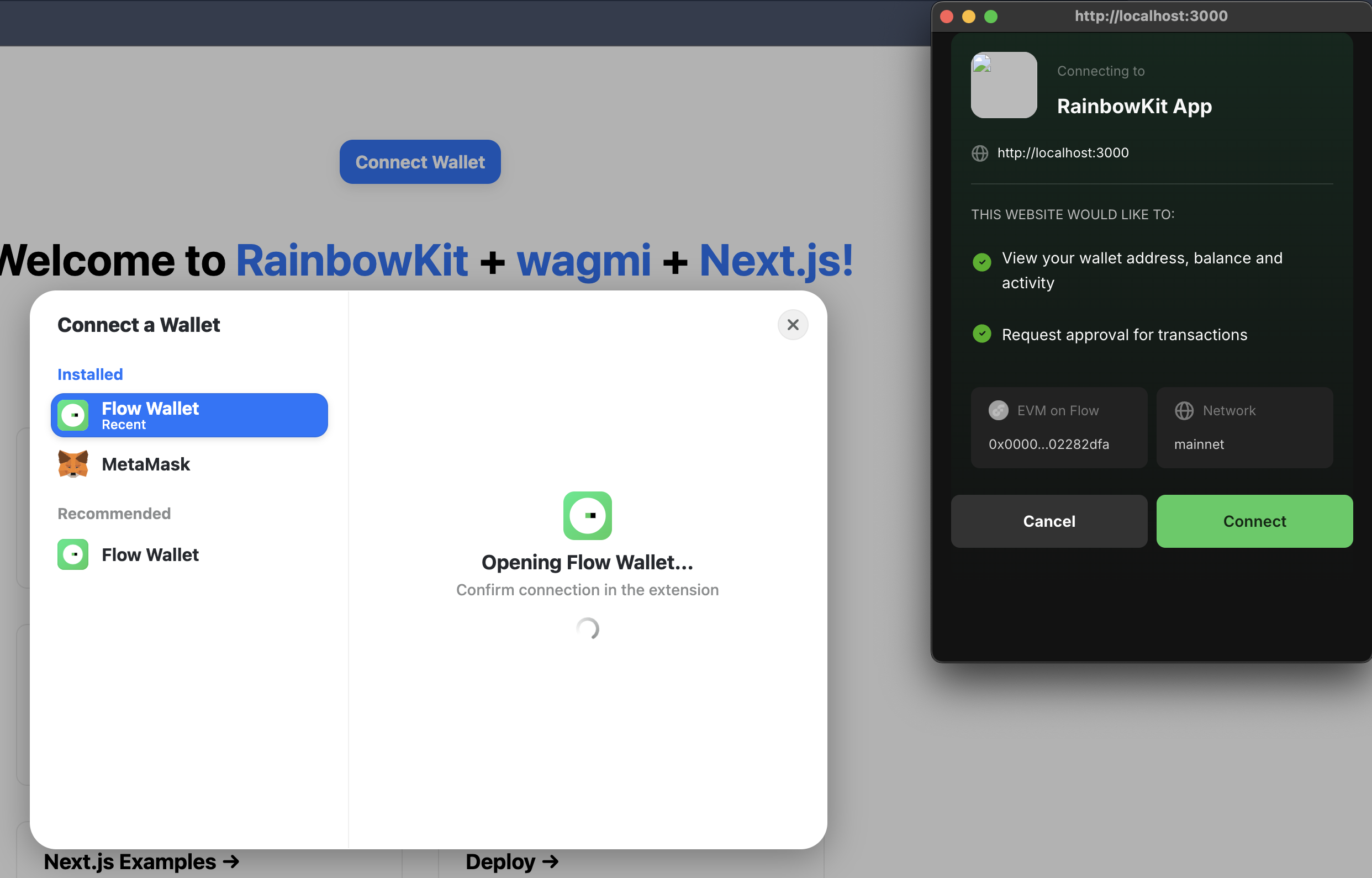

Testing Your Integration

After implementing the Flow Wallet connector and configuring Wagmi, follow these steps to verify that the integration works correctly in your dApp:

1. Click "Connect Wallet" – Open your application and click the "Connect Wallet" button.
2. Check for Flow Wallet – Ensure Flow Wallet appears as an option in the RainbowKit wallet selection modal.
   • If you haven't installed the browser extension and set up your wallet yet, you can find install it via the Chrome Web Store.
3. Connect the Wallet – Click on Flow Wallet in the selection modal. If using the browser extension, open it and press "Connect."

4. Verify Connection – Confirm that your Flow Wallet is now connected and visible in your dApp's UI.

Conclusion

In this tutorial, you learned how to integrate Flow Wallet with RainbowKit, creating a seamless wallet connection experience for your users. You should now be able to:

• Create a custom Flow Wallet connector compatible with RainbowKit's interface
• Configure your Wagmi setup to support Flow Wallet connections
• Implement a complete wallet connection flow for Flow blockchain users
• Test and verify the Flow Wallet integration in your dApp

Now that you've completed this tutorial, you're ready to enhance your dApp with additional Flow blockchain features such as token transfers, NFT minting, and smart contract interactions.
